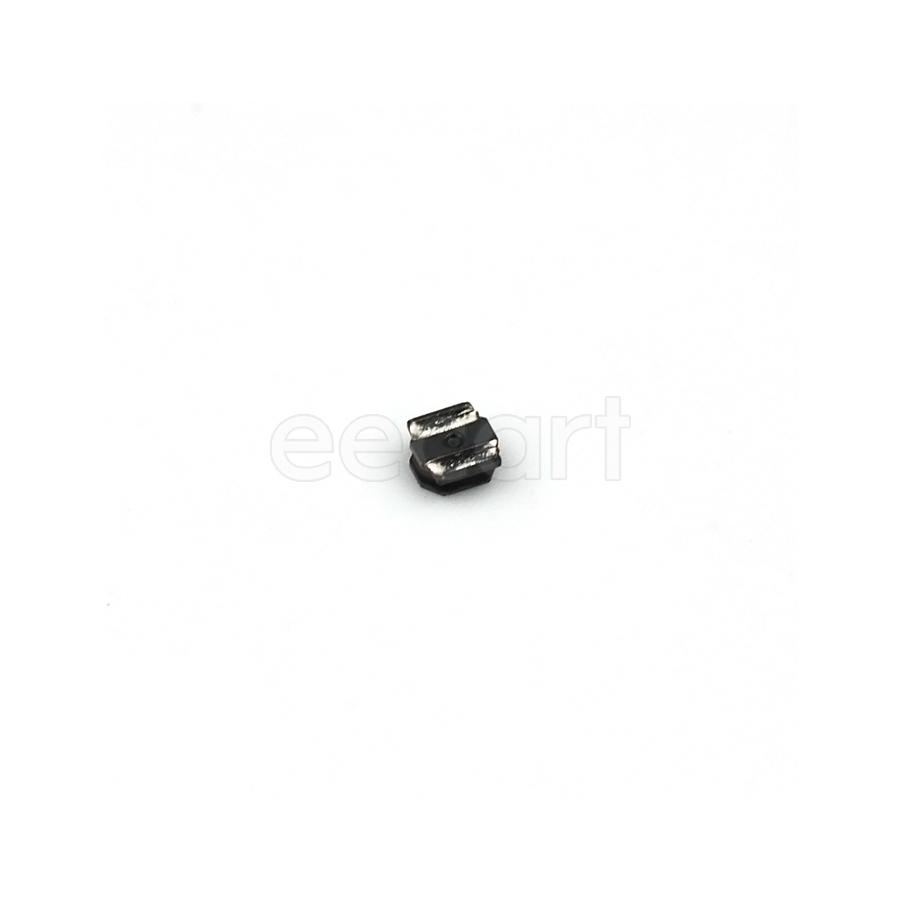

NRS5030T6R8MMGJ
Manufacturer:
Taiyo Yuden
Mfr.Part #:
NRS5030T6R8MMGJ
Datasheet:
Description:
Fixed Inductors 4.90mmL×4.90mmW×3.10mmH SMD/SMT 6.8 µH 20 % 2.3 A 52 mΩ
| Parameter | Value |
|---|---|
| Tolerance | 20 % |
| Height - Seated (Max) | 3.1 mm |
| Length | 4.9022 mm |
| Width | 4.9022 mm |
| Termination | SMD/SMT |
| Max Operating Temperature | 120 °C |
| Min Operating Temperature | -25 °C |
| Height | 3.1 mm |
| Packaging | Reel |
| Depth | 4.9 mm |
| Halogen Free | Halogen Free |
| Radiation Hardening | No |
| RoHS | Compliant |
| Self Resonant Frequency | 22 MHz |
| Current Rating | 2.3 A |
| DC Resistance (DCR) | 52 mΩ |
| Test Frequency | 100 kHz |
| Shielding | Shielded |
| Inductance | 6.8 µH |
| Core Material | Ferrite |
| Max DC Current | 2.5 A |
| Saturation Current | 2.5 A |
| Schedule B | 8504500000 |
| Max Saturation Current | 2.5 A |
| Max Temperature Rise Current | 2.3 A |
| Temperature Rise Current | 2.5 A |
| Max Length | 5.1 mm |
| Max Width | 5.1 mm |
| Min Length | 4.7 mm |
| Min Width | 4.7 mm |
| Type | Wirewound |
Stock: 71918
Distributors
pcbx
pcbxUnit Price$0.14363
Ext.Price$0.14363
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $0.14363 | $0.14363 |
| 10 | $0.11969 | $1.19690 |
| 50 | $0.10848 | $5.42400 |
| 100 | $0.09832 | $9.83200 |
| 500 | $0.08515 | $42.57500 |
| 1000 | $0.07259 | $72.59000 |
| 3000 | $0.06671 | $200.13000 |
| 5000 | $0.06130 | $306.50000 |
| 10000 | $0.06010 | $601.00000 |
